PhlatLight ? DK-105T Series Development Kit Manual
3. User Instructions
The following procedure explains how to setup the PhlatLight Development Kit. It is recommended that
the table be equipped with ESD protection.
Equipment Required by User
In order to power and use the development kit, some additional equipment is required. Table 1 lists the
type of equipment as well as a suggested part. An additional list of other compatible power supplies is
provided in Appendix B.
Lab Equipment
12V Lab Power Supply
Oscilloscope
Multimeter
Photodetector
Recommended Part
CUI Inc. FSK-S30-12U
Tektronix TDS 3024B
Fluke 187
Thorlabs PDA10A
Table 1: Additional Lab Equipment
3.1
Electrical Connections

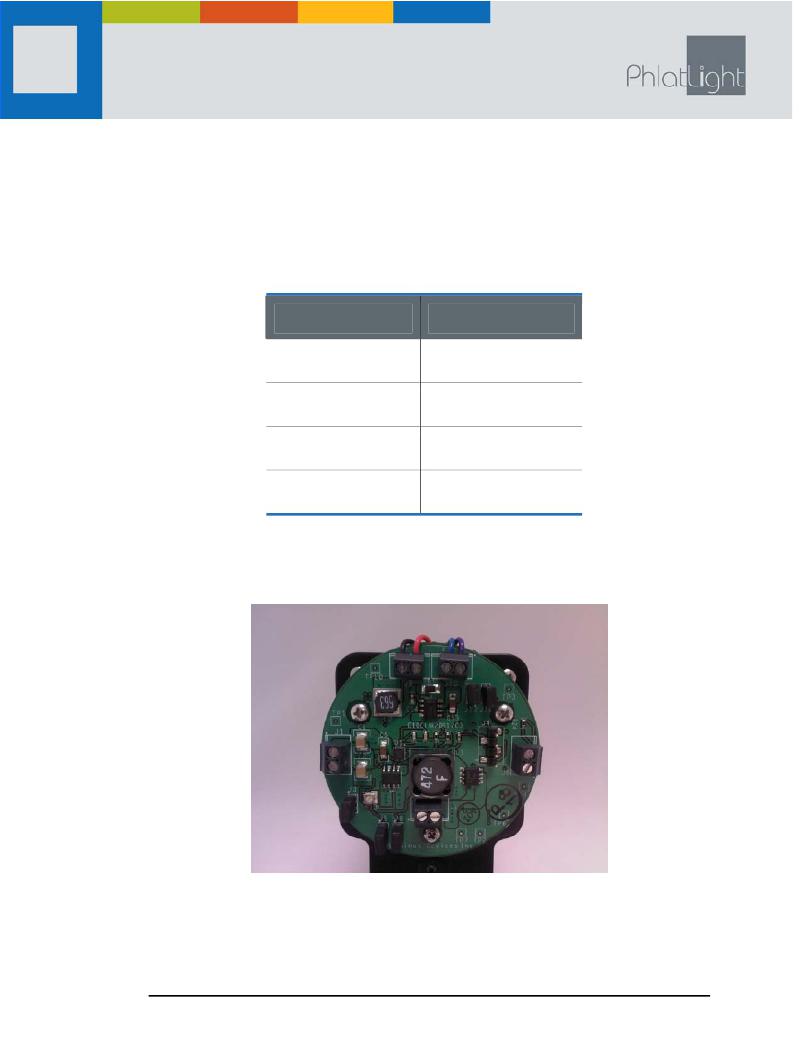

Figure 5: Completed electrical connections on DK-105T-1
960032 Rev A ? Luminus Devices, Inc. All rights reserved.
Page 4
